Understanding the Response Modification Factor (R) in Structural Engineering
By Your Name on 2024-10-26

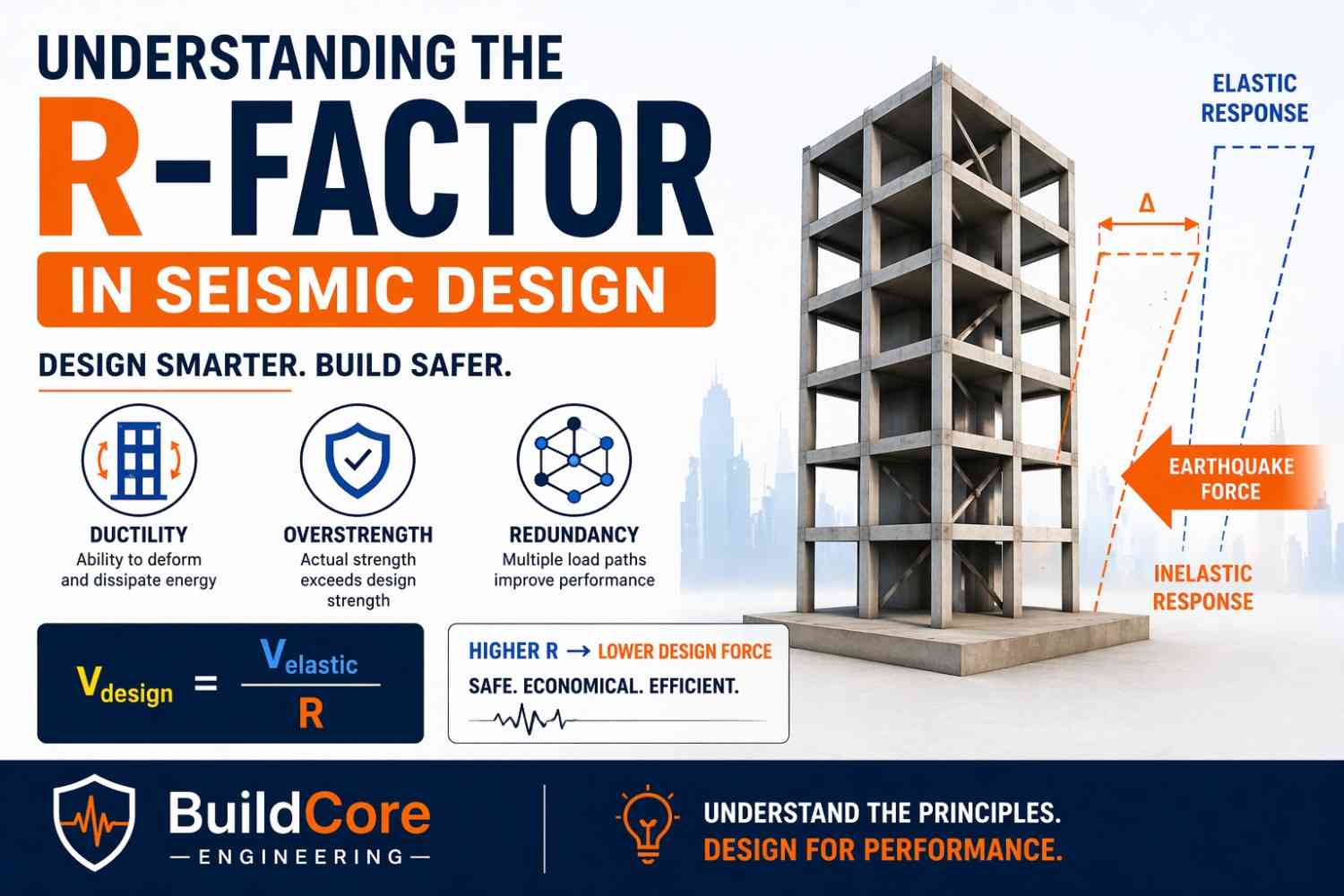

In structural engineering, particularly in seismic design, the Response Modification Factor (R) plays a crucial role in determining how a structure behaves under earthquake loading. This factor reflects a building's ability to dissipate energy through inelastic deformation, reducing the design forces and enhancing safety. Let's dive into what the R factor is, why it matters, and how it influences structural design.
What is the Response Modification Factor (R)?
The Response Modification Factor (R) is used in seismic design to reduce the elastic response forces to a level that accounts for a structure's inherent ductility, overstrength, and energy dissipation capabilities. The value of R varies based on the structural system and material type, indicating the expected level of inelastic behavior a building can undergo during an earthquake.
🔍 Why is the R Factor Important in Seismic Design?
1. Energy Dissipation 💥
During an earthquake, buildings experience dynamic ground motions. Designing a structure to remain elastic requires very high forces, resulting in an uneconomical design. By allowing for controlled inelastic deformations, the R factor reduces these forces while enabling the structure to dissipate energy through yielding.
2. Design Economy 💲
Utilizing the R factor allows engineers to design for lower forces than those calculated using the elastic response. This results in more economical designs, acknowledging that buildings can deform beyond their elastic limits without collapsing.
3. Ductility Considerations ⚙️
The R factor accounts for the ductility of the structural system. More ductile systems are assigned higher R values, as they can undergo significant deformations before failure, which helps absorb and dissipate earthquake energy.
🏛️ How is the R Factor Determined?
The R factor depends on the type of structural system. Building codes, such as ASCE 7, provide tables with R values for different systems based on expected behavior during seismic events. The assigned R value reflects factors such as:
- Ductility: Highly ductile systems (e.g., special moment frames) have higher R values.
- Redundancy: Structures with multiple load paths can distribute loads better, possibly leading to higher R values.
- Overstrength: Some structural elements possess inherent overstrength, contributing to higher R values.
📊 Examples of R Factor Values
| Structural System | R Value |
|---|---|
| Special Reinforced Concrete Moment Frames | 8 |
| Ordinary Reinforced Concrete Moment Frames | 3 |
| Special Steel Moment Frames | 8 |
| Braced Frames (Concentric) | 6 |
| Braced Frames (Eccentric) | 8 |
| Shear Walls (Reinforced Concrete) | 5 |
| Wood Shear Walls | 6.5 |
| Masonry Shear Walls | 2.5 - 5 |
The R values are based on expected inelastic behavior. For example, special moment frames are highly ductile and can dissipate large amounts of energy, justifying a higher R value.
⚠️ Limitations of the R Factor
While the R factor is an essential tool in seismic design, it has limitations:
- Simplified Representation: The R factor simplifies the reduction of design forces but may not capture all structural response complexities, such as varying soil conditions or irregular building shapes.
- Nonlinear Behavior: It is based on linear response reduction assumptions, which may not reflect the actual nonlinear behavior of some structures.
- Code Limitations: Building codes provide general R values, but the actual performance may vary based on factors like construction quality and material properties.
🏁 Conclusion
The Response Modification Factor (R) is a critical aspect of seismic design that enables engineers to account for a structure's inelastic behavior under earthquake loading. By understanding and correctly applying the R factor, engineers can design safer and more economical buildings capable of withstanding seismic forces while effectively dissipating energy.
